| Product Name：PX Series Indoor Speaker |
Product Description：

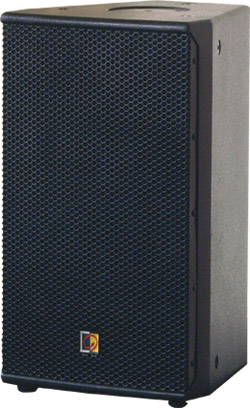

PX Series are a new generation compact full range
loudspeakers to be used especially for small and medium fixed indoor
installations. They deliver a clear and natural sound. The PX series have an
MDF wooden enclosure with scratch free durable structure black painting
and ergo grips. Built in embedded steel L-tracks provide convenient multi
axis suspension and together with the 2 extra attachment points for an
optional suspension bracket, all possible mounting positions are covered.
With the rigging-set, it’s possible to fly the loudspeaker. All speakers are
provided with an internal speaker pole flange adapter for easy installation
and set up. To protect the speakers during transportation and use, bag
covers are available for each speaker individually.
Specification：
|
|
PX108 |
PX110 |
PX112 |
PX115 |
|
Frequency response
-3dB |
95-18000Hz |
80-18000Hz |
70-19000Hz |
60-19000Hz |
|
Frequency response
-10dB |
70-20000Hz |
65-20000Hz |
55-20000Hz |
55-20000Hz |
|
RMS power |
150W |
180W |
300W |
300W |
|
Max power |
300W |
350W |
600W |
600W |
|
S.P.L（1W/1M） |
95dB |
98dB |
100dB |
100dB |
|
Max S.PL. |
117dB |
120dB |
125dB |
125B |
|
horizontal |
90° |
90° |
90° |
90° |
|
vertical |
60° |
60° |
60° |
75° |
|
H.F |
1” |
1” |
1” |
1.3” |
|
L.F |
8” |
10” |
12” |
15” |
|
Frequency |
2500Hz |
2500Hz |
2000Hz |
2000Hz |
|
imperdance |
8Ohm |
8Ohm |
8Ohm |
8Ohm |
|
Dia.（WxDxH） |
293x300x510 |
315x320x543 |
383x420x650 |
433x495x764 |
|
G.W. |
13.5kg |
15.5kg |
28kg |
34kg |
|
