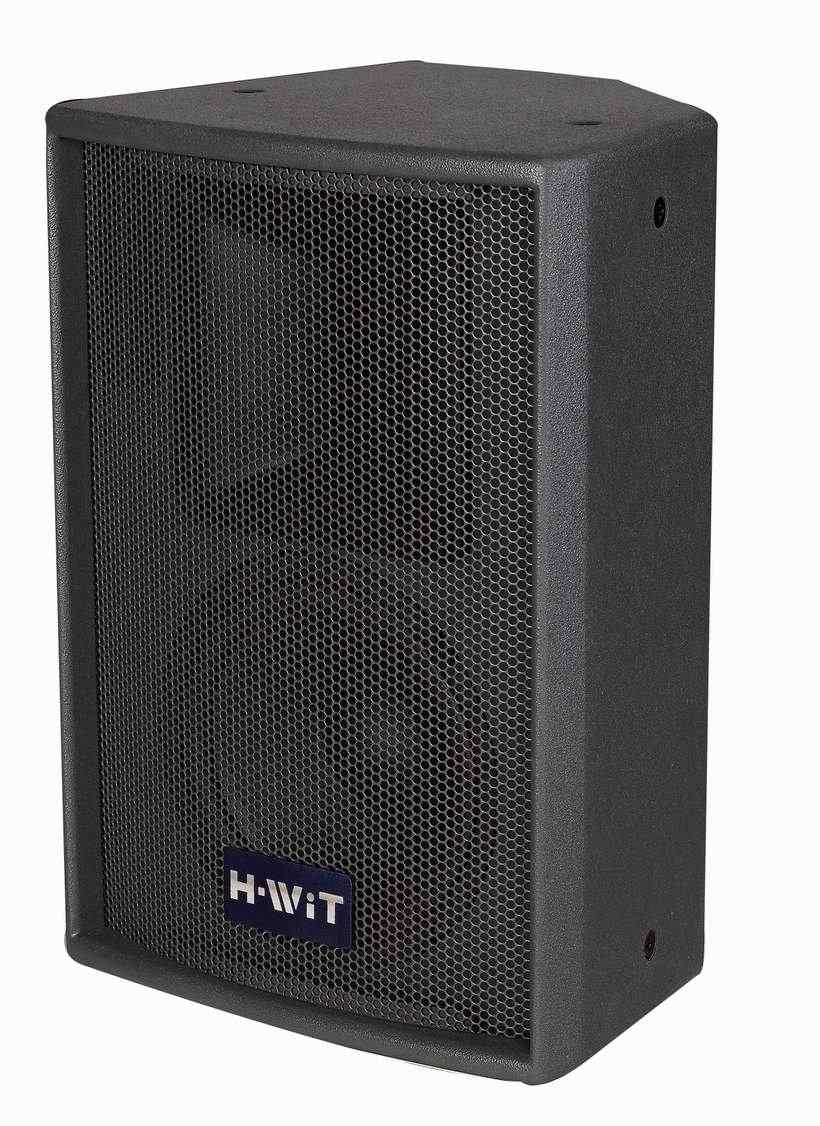

| Product Name：LS100 |
Description：
LS series loudspeaker cabinet is a series of full range frequency loudspeaker cabinet, especially for application uses. Dome tweeter, which employs fiberglass material, gives excellent reproduction of high frequency. Unique terraced loudspeaker box design, small cabinet gives strong power. alkyd resin coating makes it waterproof and moistureproof, wear-resistant and easy to protect. Installation flexible. The series has black and white finish available.
Specification：
Two way 10inch full range loudspeaker
Nominal frequencyW.........................200
sensitivity dB,1w@1m..................96
max sound pressure level dB( SPL).........119
standard impedance Ω.....................8
frequency response（Hz）..............70-20k
standard coverage（H×V）.......90°×50°
protection...................overloading protection
connector.....................2×Neutrik NL4loudspeaker connector
weight ( kg).......................15
size（H×W×D:mm）.....315×500×317
|
