| Specifications |
|

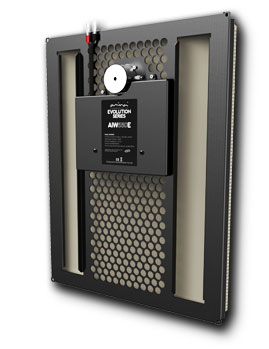

AIW550E |
| Nominal impedance |
|
4 Ohms (APU550 connected) |
| Power handling (continuous / peak) |
|
50W / 100W |
| Sensitivity (2mm plaster/mud skim) |
|
87dB 1m/ 2.83Vrms (APU550 connected) |
| Frequency response |
|
105Hz - 20kHz (-6dB) mounted in BackboxFS (APU550 connected) |
| Electrical connection |
|
Blue butt splice crimp terminals (14-16 AWG) |
| Dimensions |
|
173/4” x 135/8” x 15/8” (450mm x 345mm x 40mm) |
| Product weight |
|
3.27lbs (1.48kg) |
| Fixing requirement |
|
Amina BackboxFS / BackboxSW (wood adhesive and fixing blocks |
|
|
available on request) |
| In-line protection unit |
|
APU550 |
| Manufacturer limited warranty for residential applications |
|
10 years |
