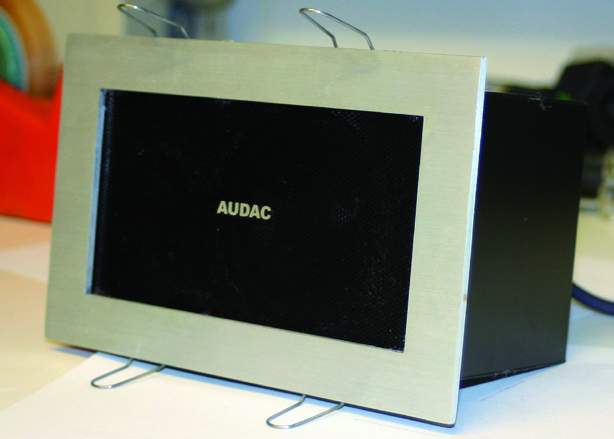

Product Name:CS3.2 Ceiling Speaker

Product Description:


CS3.2
The CS3.2 Cuban speaker features a 1" soft dome tweeter and a 3 1/8 " full range loudspeaker with shielded neodymium magnets, which are capable of producing up to 20 W RMS with a maximum of 40 W. The uniquely designed Cuban square loudspeakers are flush-mounted ceiling and/or wall speakers, which provide high-quality, wide-dispersion sound while remaining as discreet as possible. Efficiency is very important for inside-wall applications. AUDAC’s highly efficient Cuban series answers to this need with its ability to generate great sound with very little power. In fact, the Cuban can generate sound from solid surfaces by utilizing only 3 to 25 watts. These high-performance speakers have a small-perforated designer grille and are ideal for offices, boutiques, shops and hotel rooms, and if used in combination with an AUDAC subwoofer, the sound will be even better. A built-in self resetting protection circuit guarantees a long lifetime without any loss of quality or power. The Cuban speakers are made of a strong metal housing, with easy mounting springs for quick and comfortable installation. The front shows a black aluminium grid embedded in an aluminium frame, giving the speaker a dazzling modern design. When an additional line transformer, like AUDAC’s CTR06 or CTR24, is applied, the Cuban series speaker can be perfectly adapted in a 100V speaker line application.



Specification:



Maximum Power  40 Watt
Nominal Power 20 Watt
SPL (1W / 1m) 86 dB
Impedance Loudspeaker 8 Ohm
Frequency Response Fo ~ 20.000 Hz
Dimensions (W x H)  197 x 122 mm
Cut-out diameter 170 x 100 mm
Depth 97 mm
