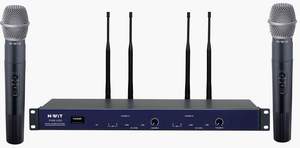

| Product Name：PWM -U201/202 series wireless microphone |
Product Description：
The technical investigation and innovative design of H-WIT makes it possible to have the best wireless microphone system which brings us perfect sound performance with high quality and hyper-stability.
Special impulse suppression circuit totally removes the noise when you switch on/off the microphone.
Wide range of dynamic, sound naturally reproduction, makes the speech easier and smoother.
Good sound code locking capacity, stable receiving and long distance pick-up.
The receiving circuit chooses stable double-tuning diversity design to avoid staccato phenomenon. Gain aerial greatly improves the receiving result.Excellent S/N( above 80dB) gives you fresh, pure sounds. The bottom ON/OFF design can avoid unexpected accidents.
Specification：
|
|
PWM-U201A PWM-U202A |
|
Receive： |
Source Auto-selection |
|
Carrier frequency： |
450～950MHz |
|
Excursion： |
56KHz(with over-volume limit) |
|
RF stability： |
Within 0.005% |
|
S/N |
＞100dB |
|
T.H.D |
＜0.5% |
|
Mute ： |
Sound code and noise control, bi-mute function |
|
Frequency response： |
50Hz-18KHz ±3dB |
|
Sensitivity： |
Input 10dB μV S/N:＞70dB |
|
Harmonec interference： |
＞80dB |
|
Output jack ： |
XLP balance P type unbalance |
|
Output strenth： |
-12dB/600Ωbalance，-2dB/15KΩunbalance |
|
Dynamic： |
＞110dB |
|
Transmit power： |
10mW |
|
Subharmonec： |
＞-60dBC～-40dBC |
|
Power： |
Additional AC power supply AC 220V 50/60Hz power supply |
|
